Junior wind monitor model 04101
Pour fermer, cliquez ici
Description

Description

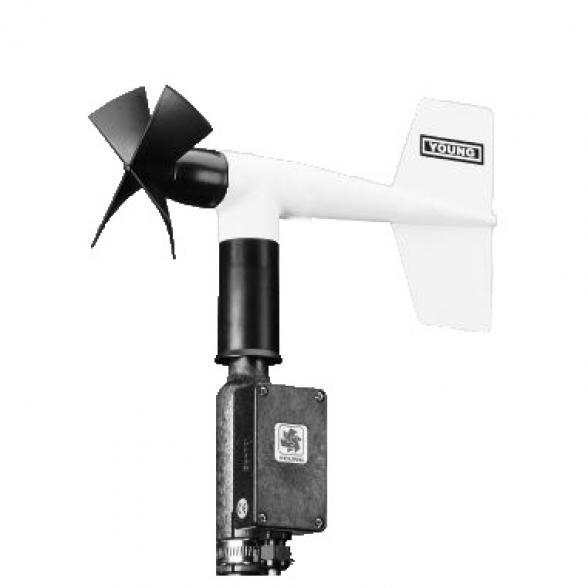

It is a smaller size version of the famous "R.M. YOUNG wind monitor". That's a sensor well suited for industrial applications in severe environments . In addition to frequency and voltage outputs regular for all wind monitors, versions with voltage or current loop outputs are also available.

Product Code

Ref : 04101 - Brand : R.M. YOUNG

BUY ONLINE >> YOUNG Wind Monitor Junior 04101 model

Specifications

Accuracy Wind speed: ± 0.5 m/s
Wind direction: ± 5°
Operating temperature -50 to 50°C
Wind direction 0-60 m/s
Gust survival 100 m/s
Azimuth mechanical: 360°
electrical: 352°
Threshold sensitivity propeller: 1.0 m/s
