Aspirated radiation shield

Pour fermer, cliquez ici
Description

Description

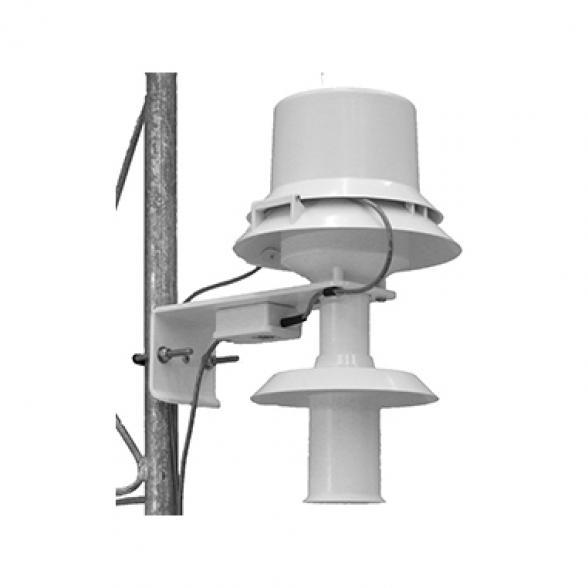

This motor aspirated shield is at the same time compact, resistant and powerful in term of protection in the solar radiations. Its integrated ventilator allows a constant circulation of air around your probe of temperature or relative humidity.

Product code

Ref : 43502
Brand : R.M. YOUNG

Specifications

Ambient temperature 0,2°C RMS à 1 000 W/m²
Delta T 0,05°C RMS with like shields equally exposed.
Aspiration rate 5 à 11 m/s depending on sensor
Power requirement 12 à 14 VDC @ 500 mA
Construction UV stabilized white thermoplastic shield.
Aluminum mounting bracket.
Stainless steel U-bolt.
Dimensions Overall: 33 cm H x 20 cm Dia
Shield: 70 mm Dia x 12 cm L
Weight Net weight: 1,1 kg
Shipping weight: 2,7 kg
